Replacing Your BioCal?

Upgrade to the more versatile, more modern, and more powerful MCH-1000(m)

Featuring a similar footprint with full-size cooler-heater performance, the CardioQuip MCH-1000(m) easily replaces your BioCal® 370. The MCH-1000(m) upgrades your set-up with a digital touchscreen, dripless connections, and a simplified cleaning procedure.


    Medtronic BioCal® 370

    CardioQuip MCH-1000(m)

    Anodized Aluminum
     Cabinet Construction
     Stainless Steel

    17x9x14 1/4in (43.2x22.9x36.2cm)
  Dimensions (LxWxH)
    19x9x16in (48.3x22.9x40.6cm)

   38 lbs (17.24kg)
    Weight (empty)
    45 lbs (20kg)

        2.25 gal (8.5L)
Water Capacity
    2.5 gal (9.5L)

    Barbed hose fittings
    Water Connections
    Quick-connect, no-spill, two-way shutoff fittings. Hose kit included.

    0-42°C
    Temp. Range
    0-42°C

    ±0.5°C
    Temp. Accuracy
    ±0.3°C

    0.1°
    Temp. Setting
    0.1°

    1500W
    Thermal System Power Rating
    1600W

    110-120 VAC, 60Hz, 15A
    Electrical
    115 VAC, 60Hz, 16A

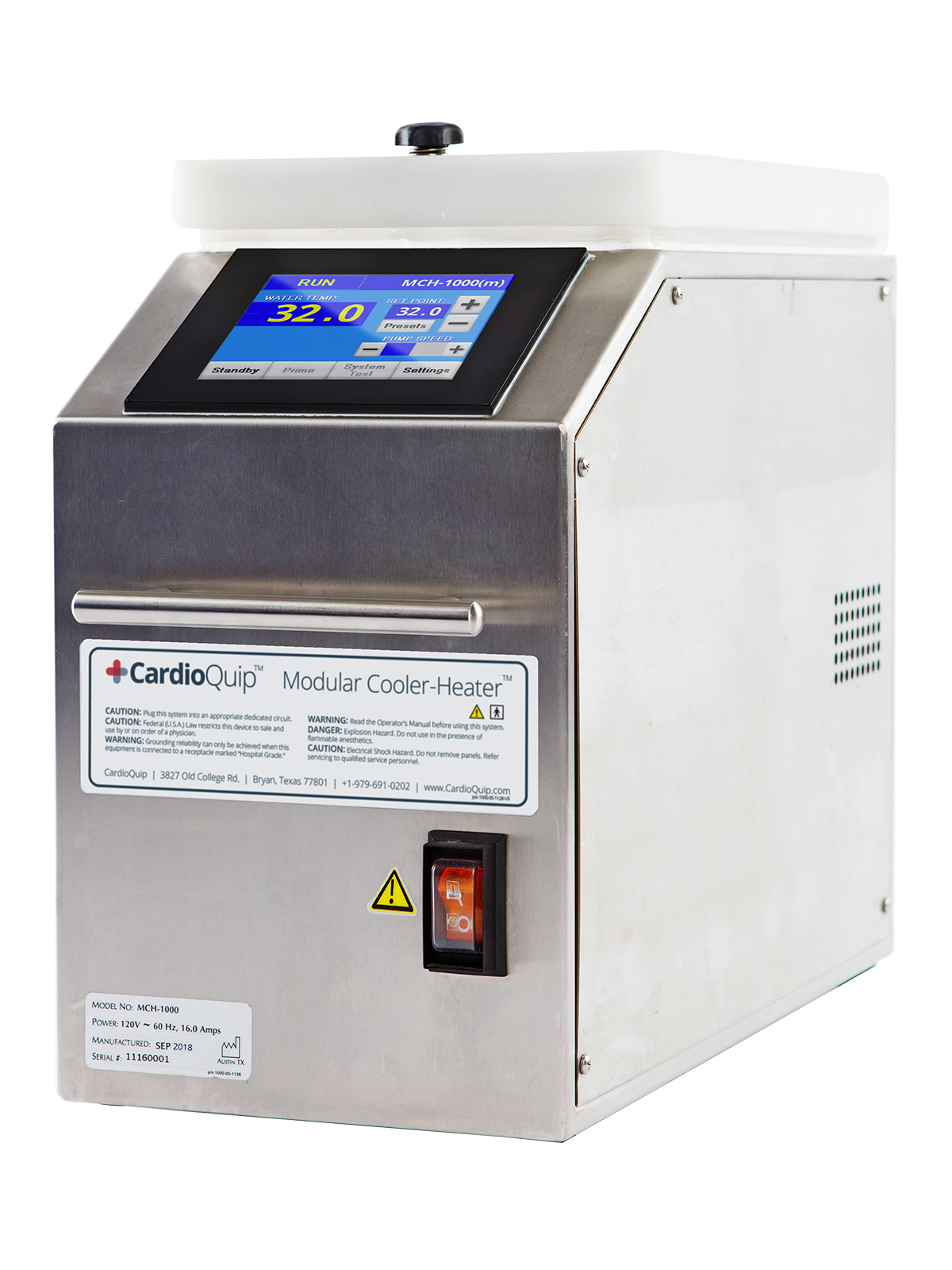

MCH-1000(m)

Full-Sized Performance in a Compact Footprint
The CardioQuip MCH-1000(m) packs full-sized cooler-heater performance in a compact footprint. No more removing ice if you need to switch from cooling to warming the patient. A 2.5 gal (9.5L) insulated, valved cold-water tank keeps ice cold, and 1600W of heat offers more efficient rewarming.

MCH-1000(M) page

Featuring

Adaptive Temperature Control

Patented Adaptive Temperature Control uses an advanced algorithm to monitor water temperature and analyze its rate of change. What results is more efficient heating and cooling without the overshoot and "porpoising" of other cooler-heaters.

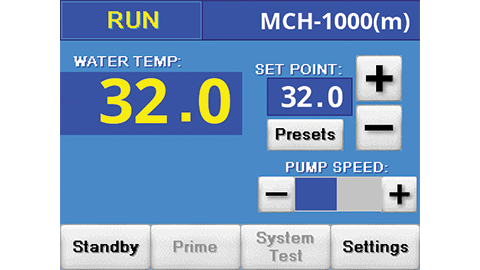

Touch-Screen Controls

The MCH-1000(m) uses a bright TFT color LCD to provide up-to-the-second information and quick temperature response. Set the temperature 3 different ways, including custom presets for ultra-fast access.

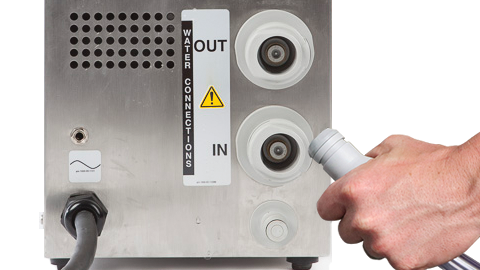

Dripless Connections

Our dripless connectors prevent water leakage and provide quick and easy connections. Upgrade your hose set to the Dripless Hose Set (MCH-10DAM/11DAM) and get dripless connections at both ends.
