MCH-1000(m)® | Compact Unit
MCH-1000(m)® | Compact Unit
Simply Powerful.
The CardioQuip MCH-1000(m)® delivers full-size cooler-heater performance in a compact footprint. Featuring a digital touchscreen, precision temperature controls, and modular customization, the MCH-1000(m) delivers the performance your patient needs and the simplicity you desire.
Featuring
Best-in-class cooler-heater performance
Compact footprint
Low power mode allows for ease of transport
Simplified cleaning
2.5 gal (9.5 L) insulated, valved cold water tank keeps ice cold
1600W of heat offers more efficient rewarming.
Patented Adaptive Temperature Control accurately maintains the set temps with minimal operator intervention.
Modules and accessories include the optional Thermo-Electric Cooling Module which adds cooling ability and the all-new MiniCart, a stainless steel cart to transport your MCH-1000(m).
MCH-1000(m) Specifications
| Dimensions (LxWxH) | 19x9x16 in (48x23x41 cm) |
| Weight (empty/full/max) | 45 lbs (20 kg) / 65 lbs (29kg) / 76 lbs (34 kg) |
| Water Capacity (min/max) | 1 gal (3.8L) / 2.5 gal (9.5 L) |
| Cooling Medium | Ice (Optional: Thermo-Electric Cooling Module) |
| Water Path | Single |
| Maximum Flow Rate | (high/low) 20/14 lpm (5.3/3.7 GPM) |
| Maximum Pressure | 83 kPa/ 12 psi (closed loop, blocked flow) |
| Water Connections | Quick-connect, no-spill, two-way shutoff fittings. Hose kit included. |
| Temperature Control | CRange 0-42°C Accuracy ±0.5°C, Setting 0.1° |
| Power Consumption | Max Peak 1900W, Typ <1740W |
| Electrical | 115 VAC/ 60Hz, 16A (Class 1 equipment per UL 544) |
| Operating Environment | 5-40°C, 0-90% humidity |
Available Modules and Accessories for MCH-1000(m)
VivaCart | VC-1000
Designed to transport the MCH-1000(m), the all-new CardioQuip VivaCart™ offers portability, versatility, and seamless integration with most pumps.
Thermo-Electric Cooling (TEC) Module | MCH-11TEC
Want to prolong the life of your ice? The Thermoelectric Cooling (TEC) Lid Module replaces the lid on the MCH-1000(m) and provides 100W of thermoelectric cooling power.
An average patient at rest gives off about 100W of heat, so we designed the TEC Module to provide 100W of cooling to increase your cooling efficiency.

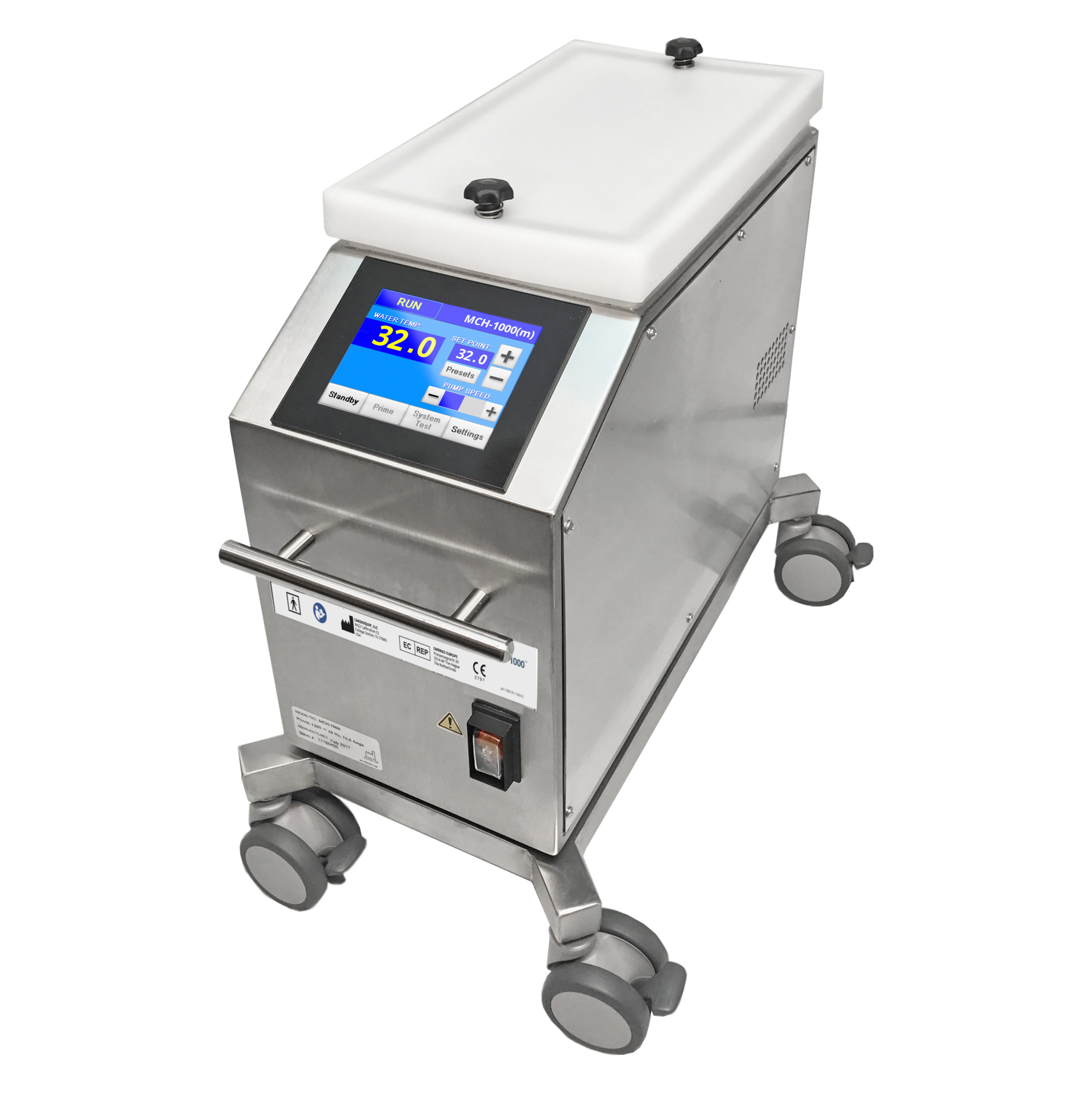

Wheelset Option | MCH-11WSO
Need to move your mini around? Add portability to the MCH-1000(m) with the Wheelset Option module. The wheelset option features fully lockable medical grade casters mounted on a stainless steel frame.
Dripless Hose Set | MCH-11DAM
In today's perfusion climate, maintaining water quality in the OR is critical. The Dripless Hose Set offers dripless connectors at both ends to provide a clean and safe way to keep cooler-heater water away from the OR environment.

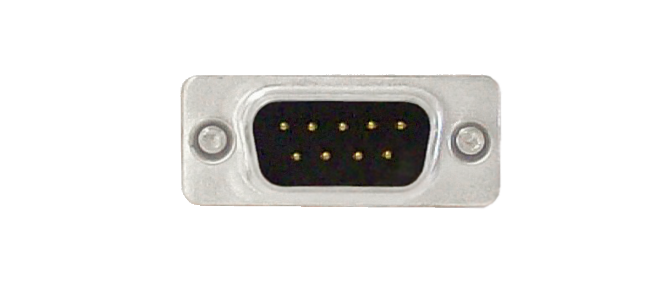

Communications Module | MCH-11COM
Provides RS-232 or ethernet communications capability to export cooler-heater parameters to electronic medical record systems (i.e. Epic & Cerner)

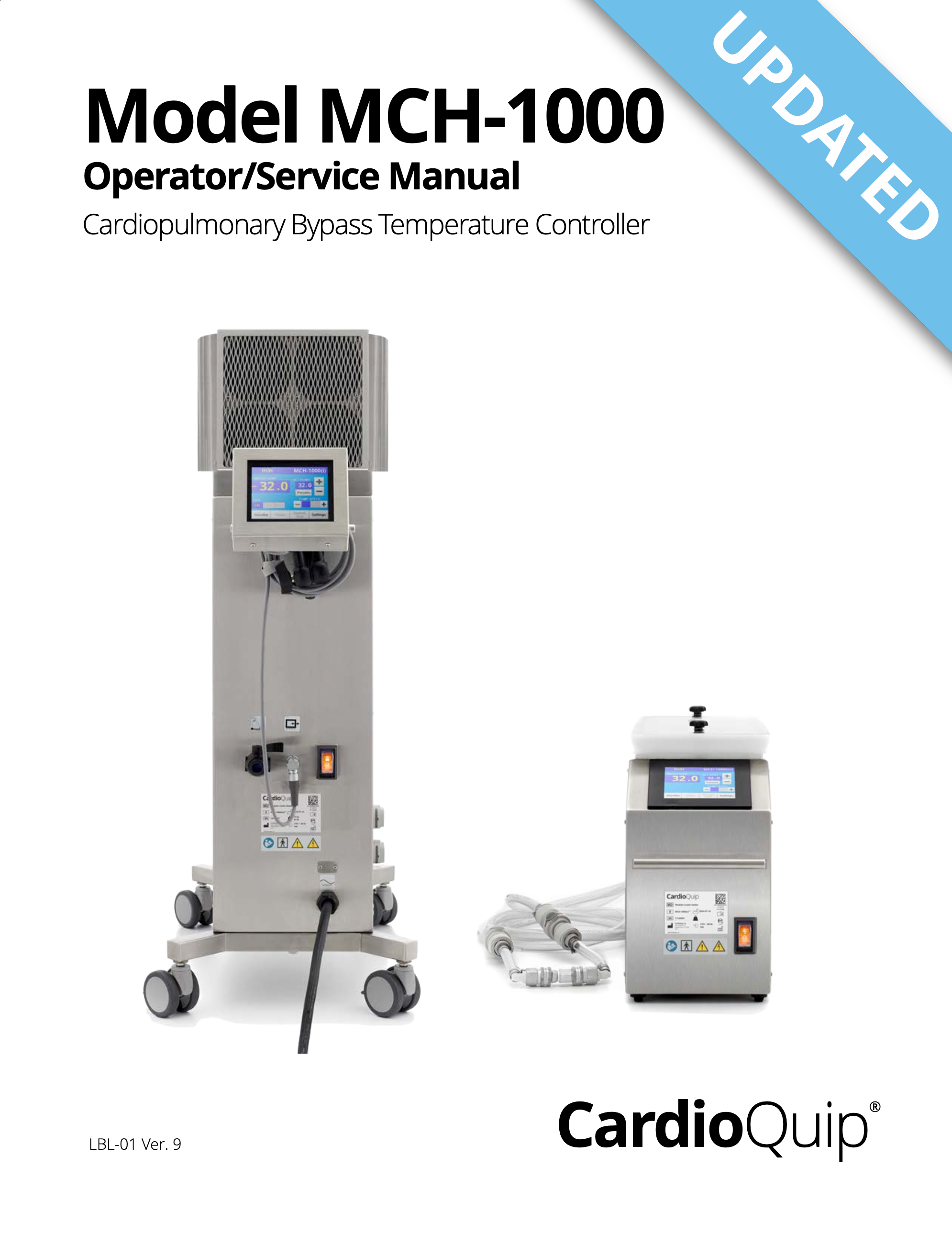

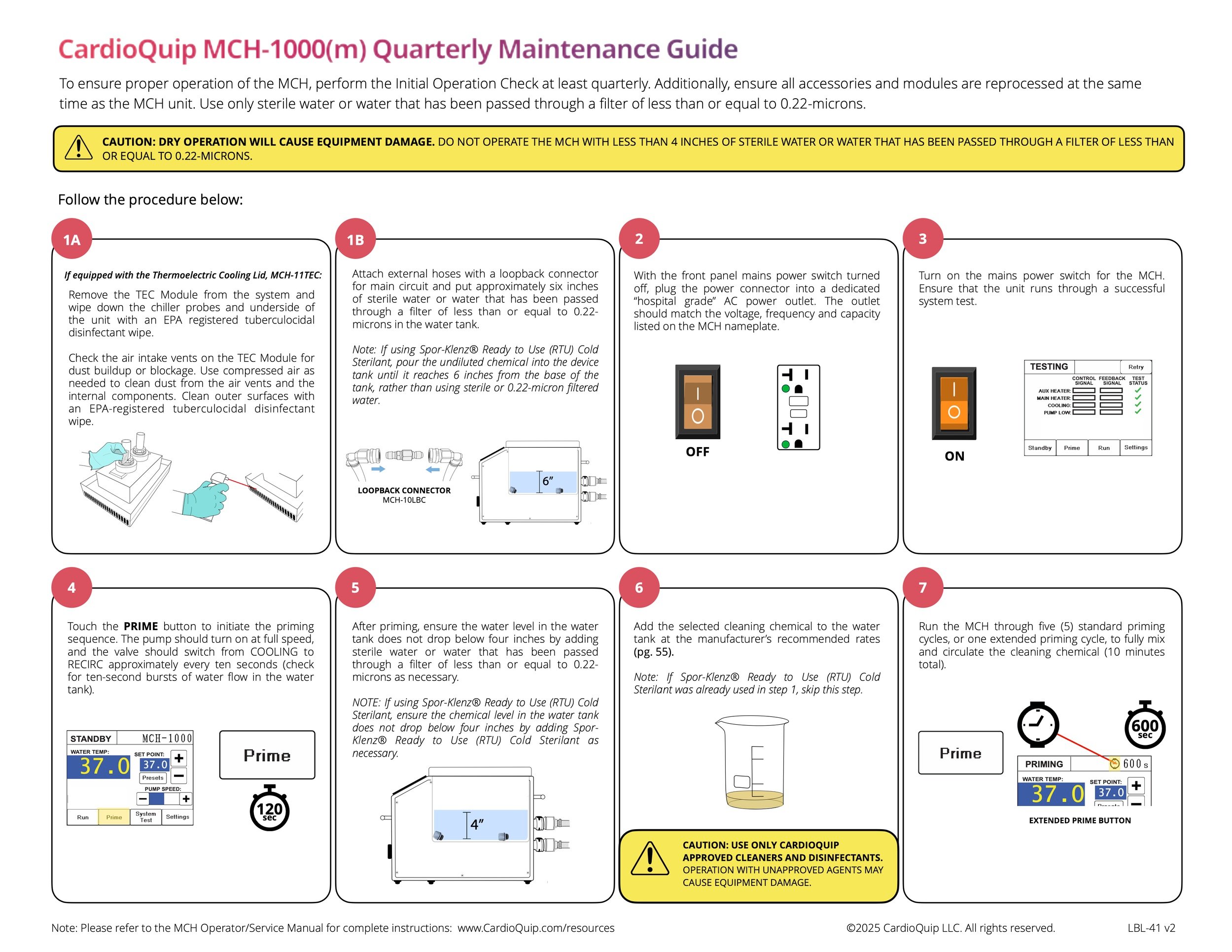

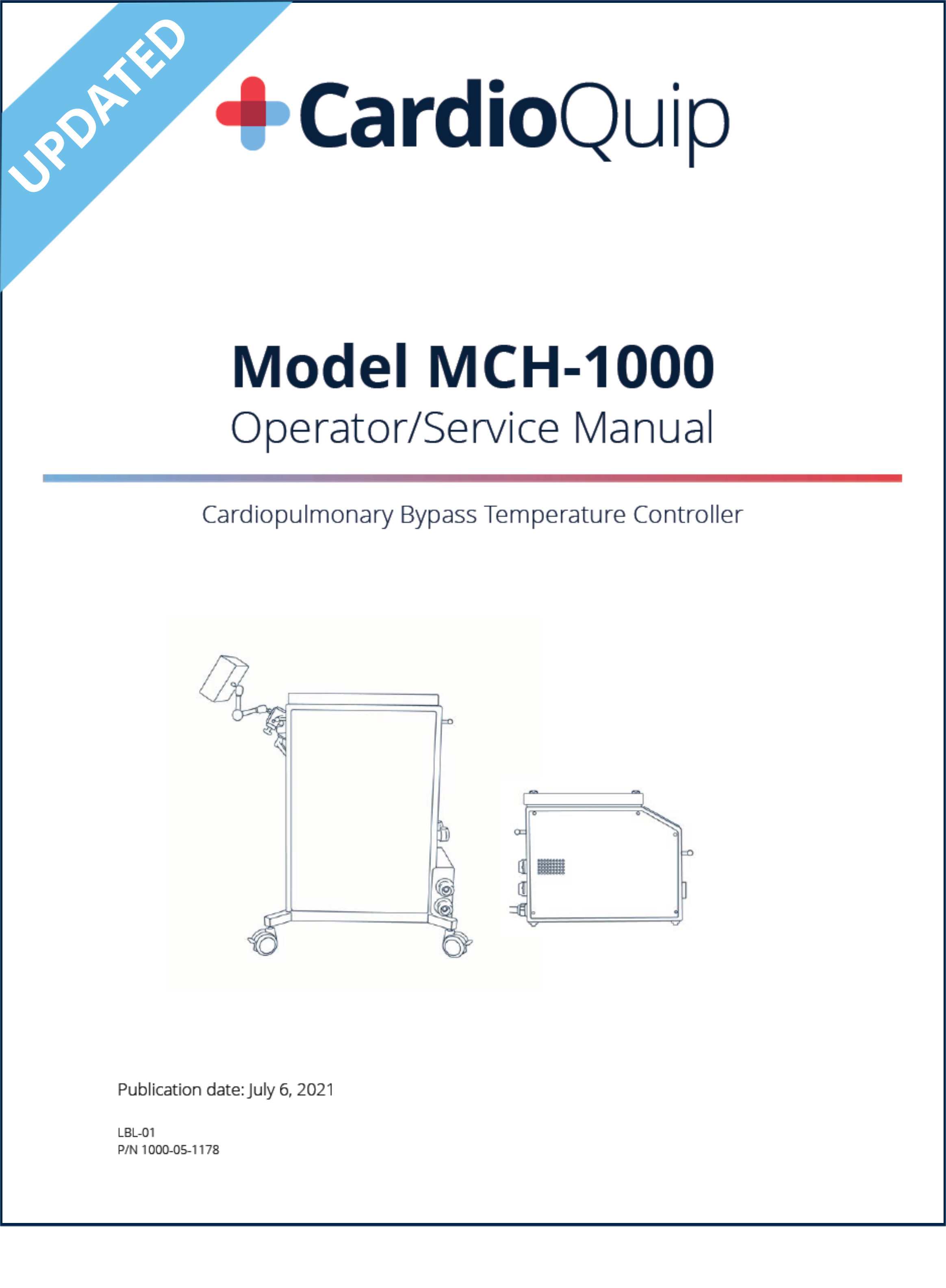

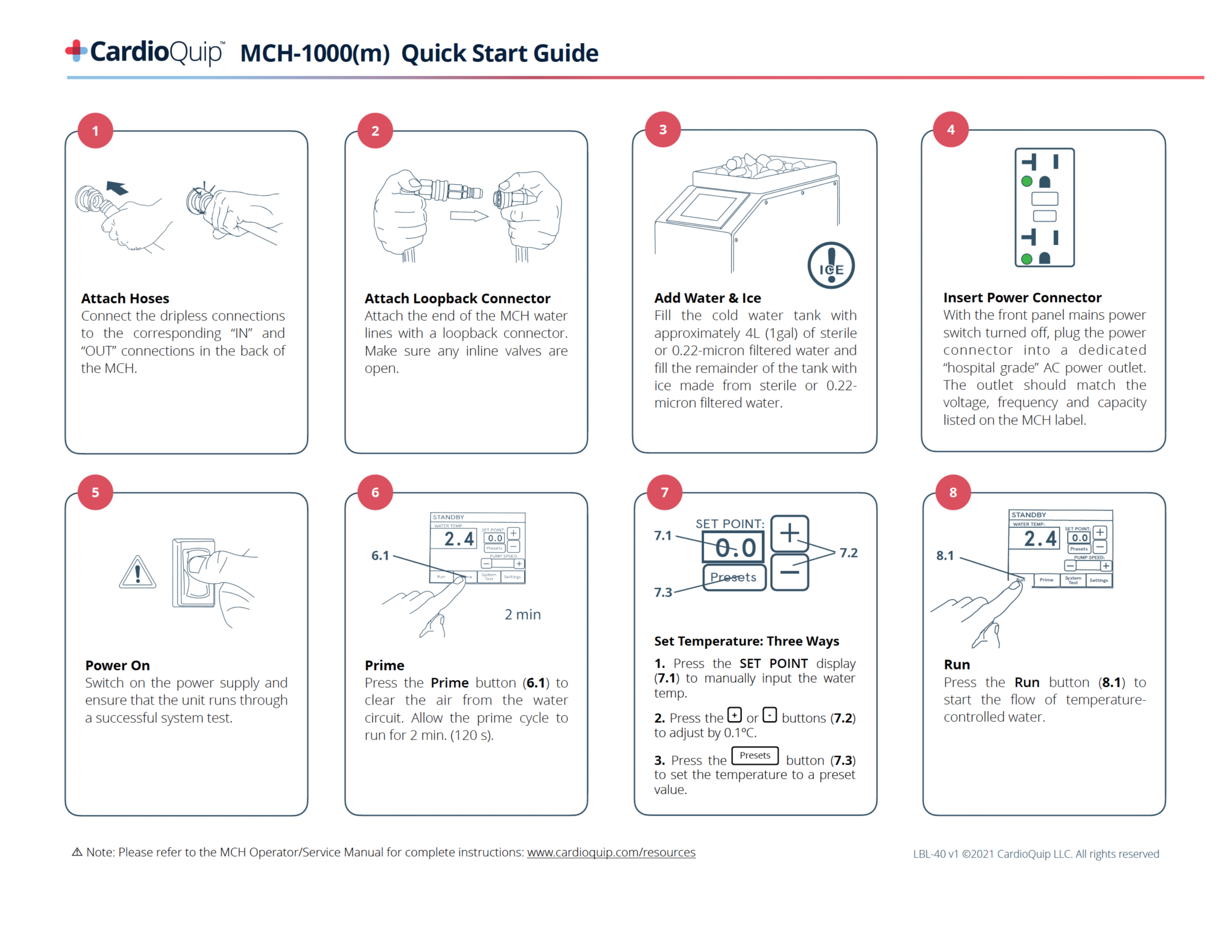

MCH-1000(m) Resources
