MCH Modules
For years, cooler-heaters have been made with a "one size fits all" approach that limits customization and often adds unnecessary cost. That's why CardioQuip created the MCH Series to be modular in design. Customize your MCH unit with the modules below to fit your specific needs.
Available MCH-1000(i) Modules & Accessories
Refrigeration Module | MCH-10RMS
Tired of hauling ice buckets to the OR? The CardioQuip Refrigeration Module replaces the lid on the MCH-1000(i) with an enclosed condensing unit that forms a block of ice in the tank. With room-temperature water, the Refrigeration Module will chill the water to 3°C in about one hour, and begin to form ice in about 90 minutes. Click here for a timelapse video.

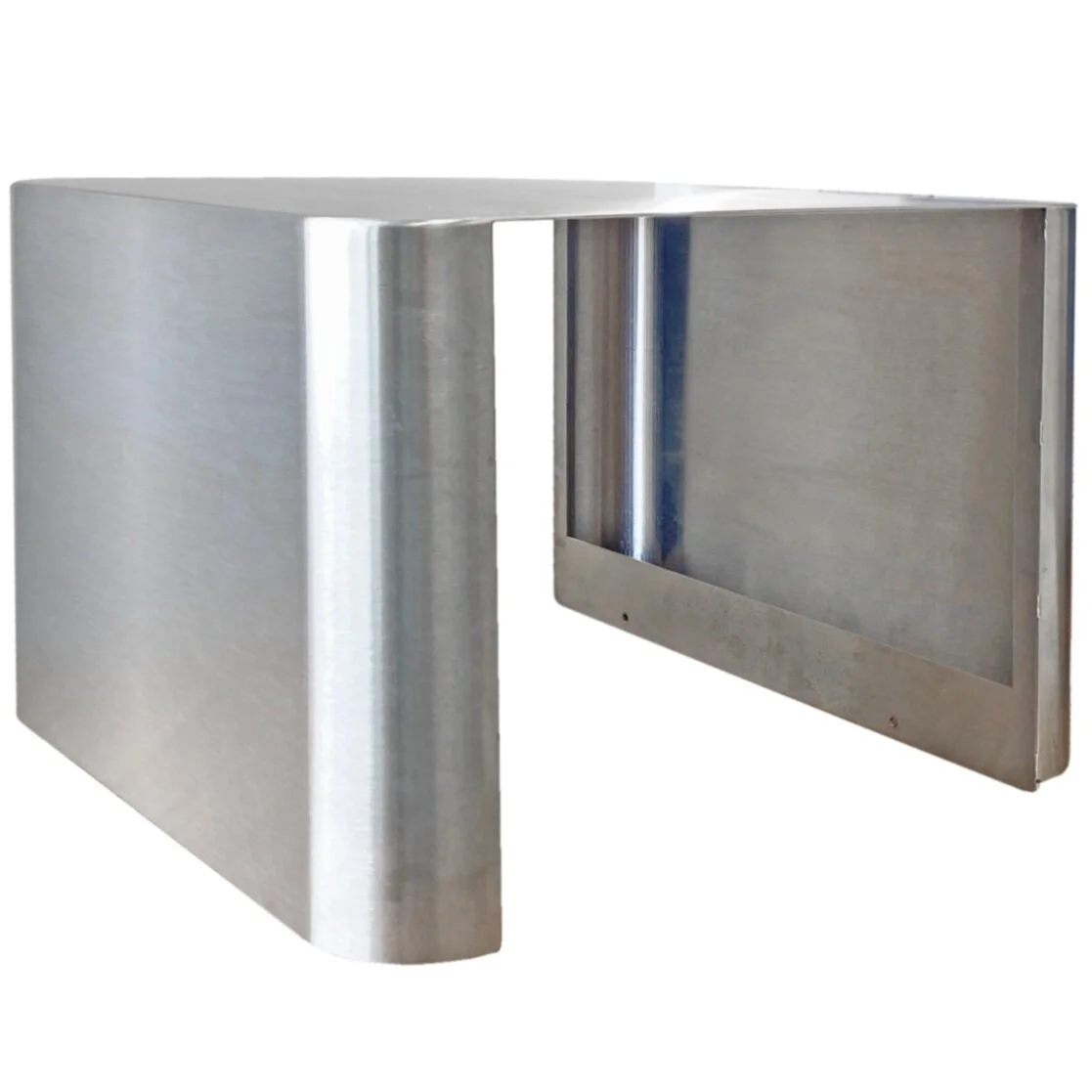

Airflow Redirection Hood | MCH-10ARH
Redirects exhaust air downward from MCH-10RMS Refrigeration Module
—Custom fit for MCH-10RMS
—Made of medical grade stainless steel
—Easy installation over existing refrigeration module.
Cardioplegia Shared Channel (CSC) Module | MCH-10CSC
With the Cardioplegia Shared Channel Module, there's no need to add an additional unit for Cardioplegia. In the dual-shared channel arrangement, the main circuit delivers fully temperature-controlled water, and the secondary unit can be toggled between cold water (directly from the ice tank) and the main circuit. The Cardioplegia Shared Channel module is a perfect complement to the Quest MPS™, increasing the cooling capacity of that system.

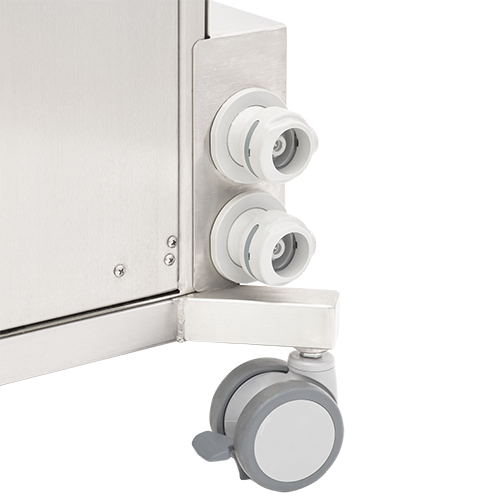

Dripless Hose Set | MCH-10DAM
In today's perfusion climate, maintaining water quality in the OR is critical. The Dripless Hose Set offers dripless connectors at both ends to provide a clean and safe way to keep cooler-heater water away from the OR environment.
Blanket Connection Module
Working with a patient blanket? Add the Blanket Connection Module to your MCH-1000(i) to provide external warming or cooling. Applications include prevention and treatment of hypothermia, fever reduction, and general patient comfort.
Communications Module | MCH-10COM
Provides RS-232 or ethernet communications capability to export cooler-heater parameters to electronic medical record systems (i.e. Epic & Cerner)
Available MCH-1000(m) Modules & Accessories
MiniCart | MIN-11CRT
CardioQuip's lightweight stainless steel MiniCart is designed to increase the portability of your MCH-1000(m) compact unit. The MiniCart is fully customizable to suit your specific needs.
Fully adjustable sliding shelf that locks into place
Medical Grade Casters
Dual Adjustable height infusion poles
Small footprint, easy to maneuver
Customized to fit MCH-1000(m)
Made in the USA

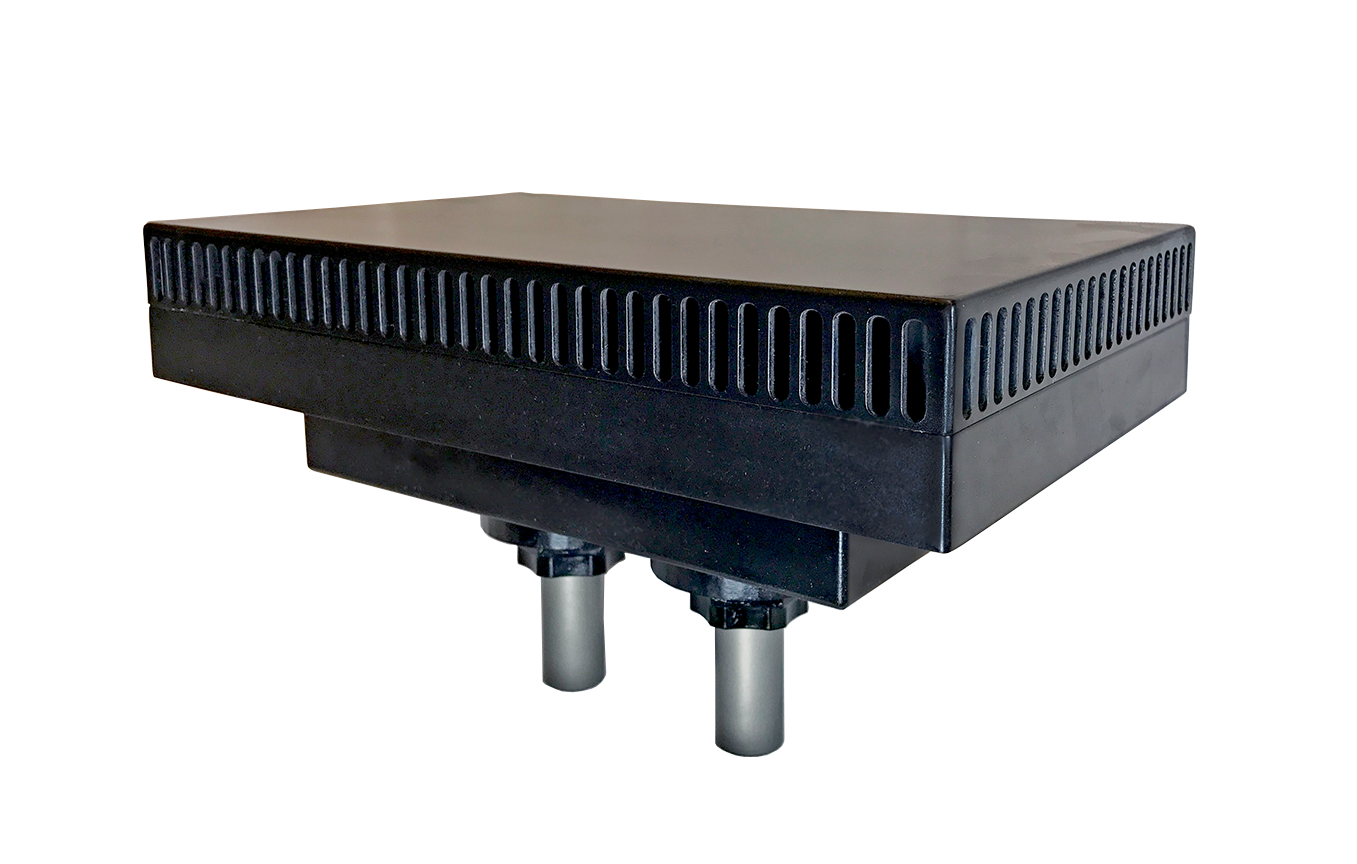

Thermoelectric Cooling (TEC) Lid Module | MCH-11TEC
Want to prolong the life of your ice? The Thermoelectric Cooling (TEC) Lid Module replaces the lid on the MCH-1000(m) and provides 100W of thermoelectric cooling power.
Wheelset Option | MCH-11WSO

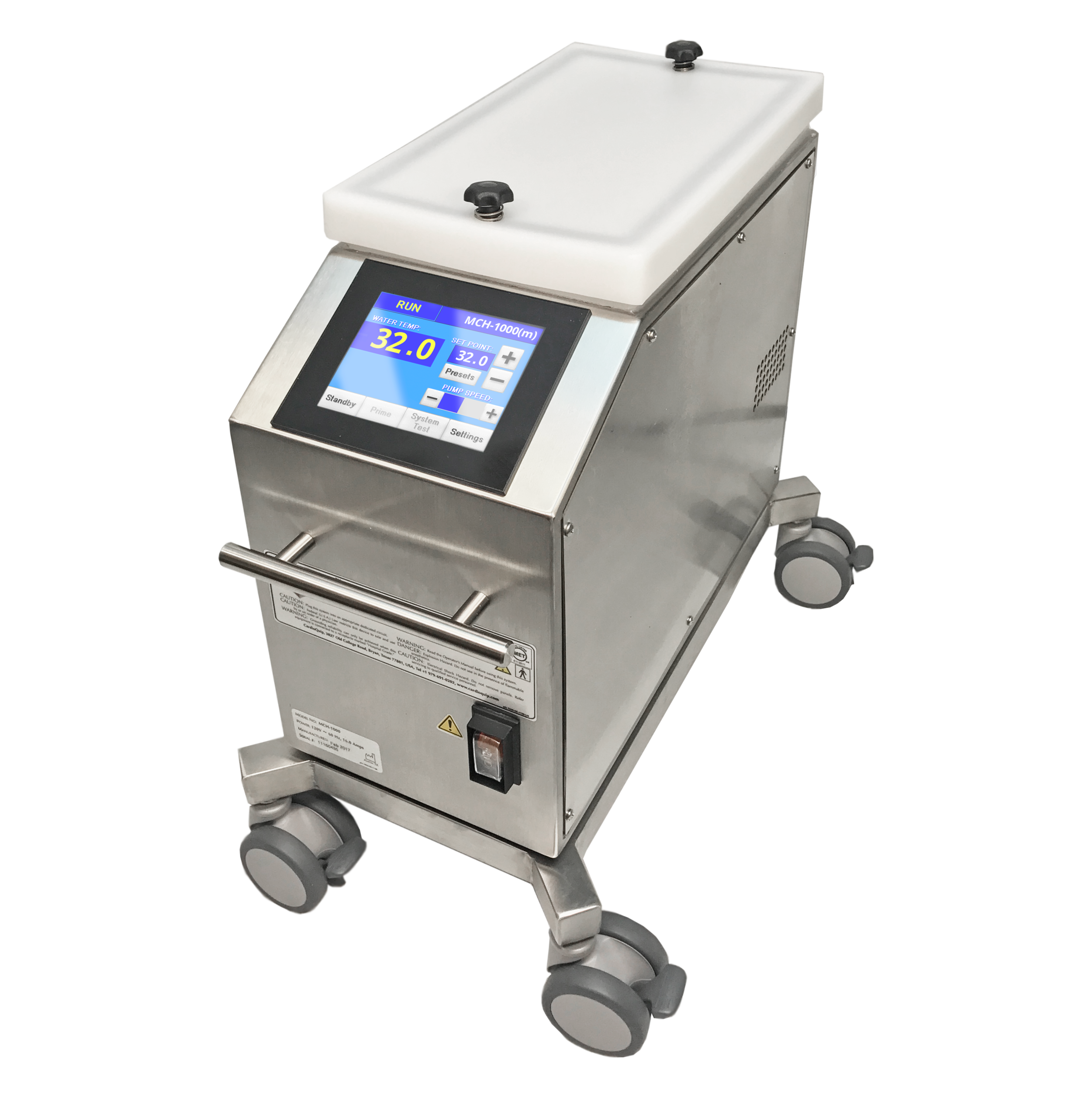

Need to move your mini around? Add portability to the MCH-1000(m) with the Wheelset Option module. The wheelset option features fully lockable medical grade casters mounted on a stainless steel frame.
Dripless Hose Set| MCH-11DAM
In today's perfusion climate, maintaining water quality in the OR is critical. The Dripless Hose Set offers dripless connectors at both ends to provide a clean and safe way to keep cooler-heater water away from the OR environment.
Communications Module | MCH-11COM
Provides RS-232 or ethernet communications capability to export cooler-heater parameters to electronic medical record systems (i.e. Epic & Cerner)
