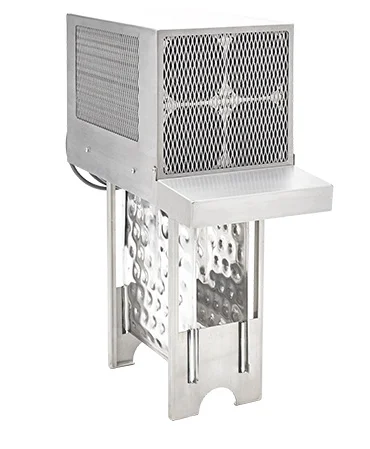

Refrigeration Module Specifications
MCH-10RMS
Dimensions (LxWxH) | Installed in MCH-1000(i): 26x16x45 in (66x42x114 cm) Standalone: 20.5x10.5x26.5 in (52x27x68 cm) |
Weight | 72 lbs (33 kg) |
Induced Airflow (ft3/min) | <300 |
Power Consumption | Max Peak 690W, Typ <600W |
Electrical | 115 VAC/ 60Hz, 6A 230 VAC/ 50Hz, 3A (Class 1, Type BF equipment per UL 2601-1) |
Leakage current (µA) | <100 |
Ground resistance (Ω) | Max 0.1 |
Operating Environment | 5-40°C, 0-90% humidity |
